Emissions Treatment · MIRA-CUBE™ · Available through ECI
A unique solution to reduce
your emissions.
A proven solution to meet Tier 4 regulations for first-fit and retrofit applications.
A compact, integrated emissions control system combining SCR, DPF and Oxidation Catalyst in a single housing engineered for diesel engines from 1 to 4 MW.
When every square metre counts.
Our MIRA-CUBE™ delivers a space-efficient solution ideal for data centres, hospitals, commercial buildings and remote sites where footprint and installation speed are critical.
ECI's APAC-based applications engineers commission and support every MIRA-CUBE™ installation, so you get proven MIRATECH technology backed by ECI's four decades of Australian emissions expertise.
- Tier 4 Final compliant meets the world's most stringent engine emission standards
- Plug-and-play installation, single skid, integrated emission control systems
- Modular and scalable with the ability to add catalyst elements as regulations tighten

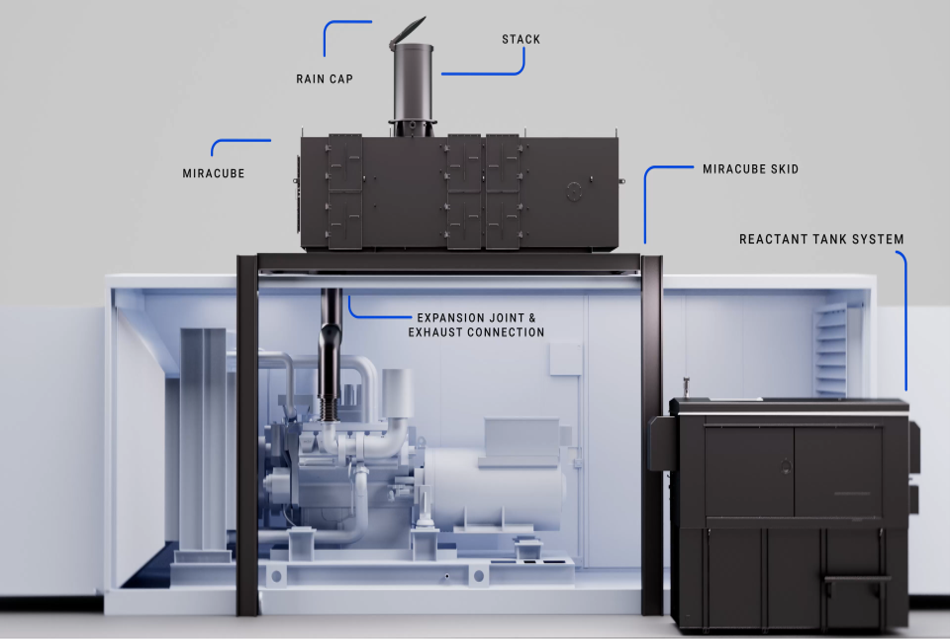

- Compact fits on generator enclosures or inside existing engine rooms
- First-fit or retrofit-ready minimal site impact, designed for existing installations
Emission reductions
A flexible path for current and future emission needs. The MIRA-CUBE™ can be supplied and additional catalysts added later as regulatory targets tighten, protecting your investment across regulatory cycles.
Ask about the MIRA-CUBE™ →
Key Features
Everything integrated.
Nothing wasted.

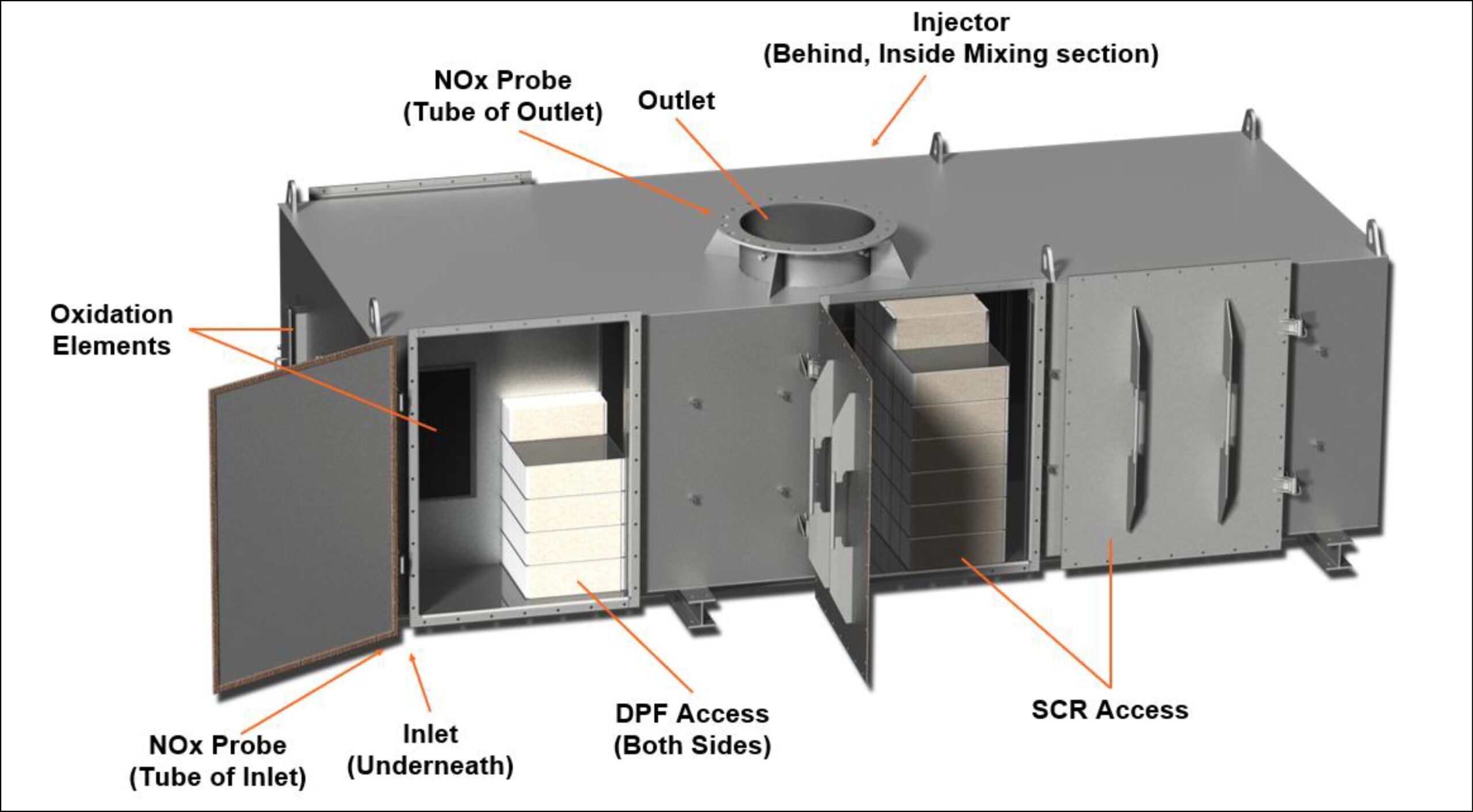

The MIRA-CUBE builds on proven MIRATECH technologies and offers stationary diesel engine owners and operators a more compact packaging option. Everything is assembled into a plug-and-play installation, single skid design, with an integrated emission control system.
Single-Housing Assembly
SCR, DPF and oxidation catalyst integrated into one compact skidded unit. No complex field assembly or multiple component deliveries, everything arrives ready to connect.
Plug-and-Play Installation
Flexible inlet and outlet options simplify piping connections. Pre-integrated systems reduce on-site construction time and shorten project schedules for faster startups.
Retrofit-Ready Design
Compact integrated design fits existing generator enclosures and engine rooms with minimal site impact. Ideal for upgrading existing plant without replacing the engine.
Passive LTR™ DPF
Low-temperature regeneration at just 500°F (260°C) suitable for standby and lower-load diesel applications without active heating systems or additional infrastructure.
Integrated Silencing up to 30 dBA
Eliminates the need for a separate exhaust silencer in many installations, further reducing footprint and system complexity, particularly valuable in space-constrained sites.
Modular Catalyst Design
Additional catalyst elements can be added later as regulations tighten. Protects your compliance investment across future regulatory cycles.
Reactant Tank System (RTS)
Combines DEF storage, dosing and CEMs controls in a single weatherproof enclosure - ideal for retrofit projects where simplicity and minimal site impact are critical.
Xpress Preheat System
Dramatically reduces time-to-injection after engine startup, SCR performance within 10 minutes of operation, critical for standby and emergency power applications.

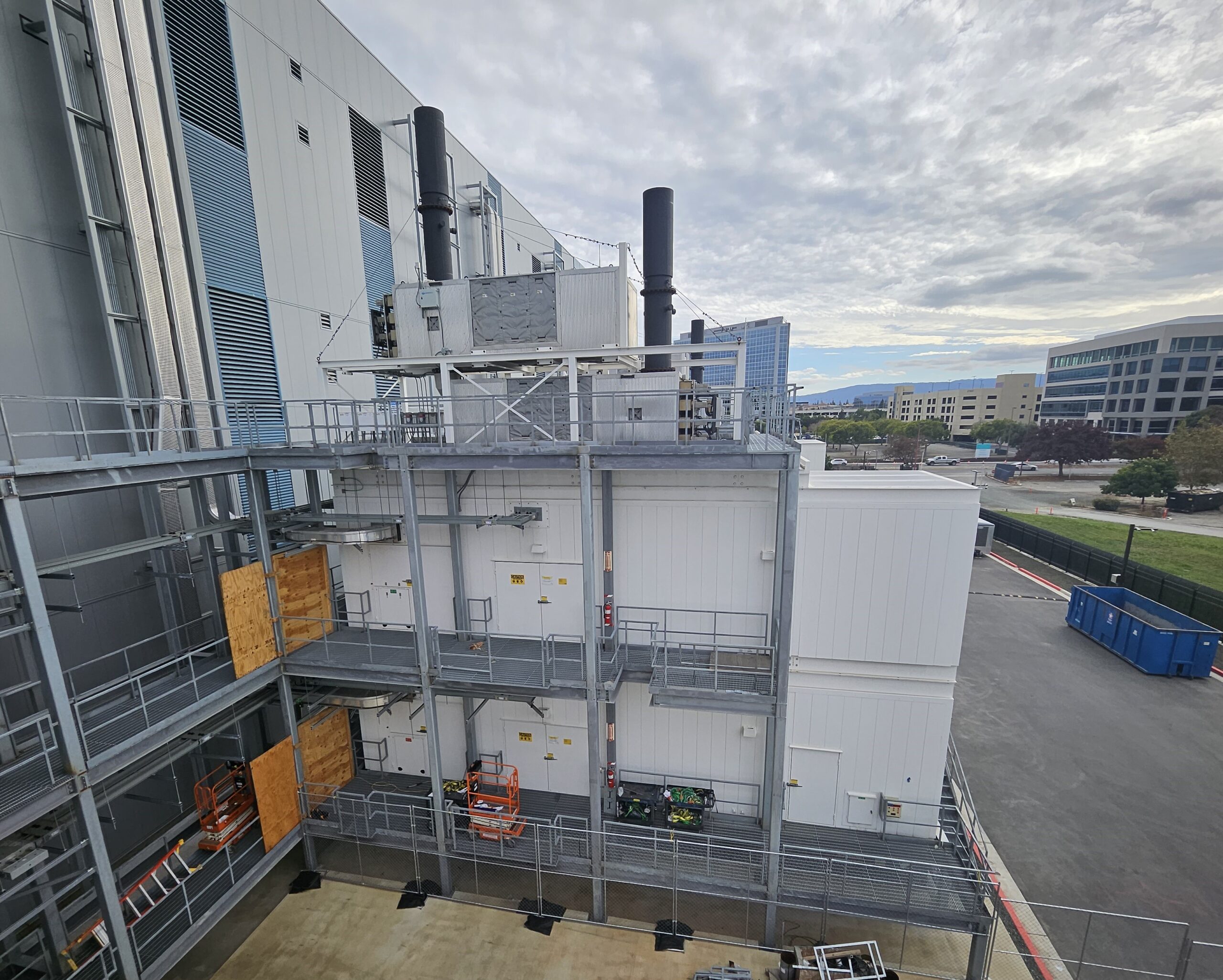

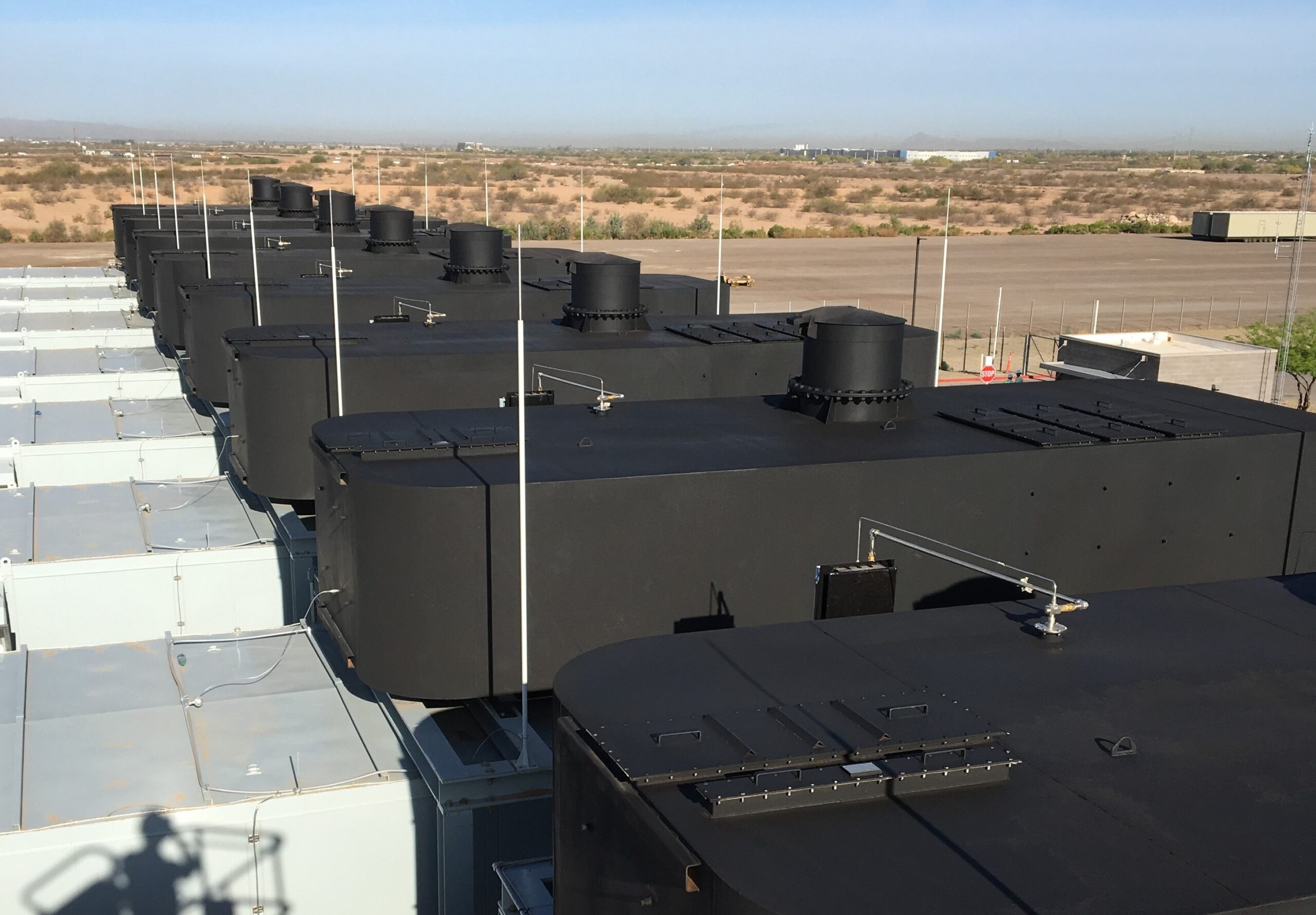

Space-Constrained Sites
Stackable in data centre applications where the footprint is compact, purpose-designed for engine rooms and generator enclosures. Multiple industry applications, including hospitals & commercial buildings where every square metre matters.
Closed-Loop CEMS Controls (Continuous Emissions Management System)
All-in-One CEMS control cabinet regulates urea dosing via PLC using a continuously monitored NOx signal. Live data stored for a minimum of five years, with SCADA integration via Modbus and optional 24/7 remote access.
Urea Injection System
Dosing and mixing duct, urea metering pump and control, urea storage tank and all accessories provide the lowest amonia slip possible. Urea supplied as solution or pellets. Includes the Reactant Tank System (RTS) for retrofit deployments.
Access Door System
ECI's easy-access door system for service and maintenance provides unrestricted access to catalyst blocks, reducing servicing time and cost throughout the life of the asset.
Is the MIRA-CUBE™ right for your project?
If you're operating a single diesel generator between 1 and 4 MW in a data centre, hospital, commercial building or remote site, the MIRA-CUBE™ may be the fastest and most space-efficient path to compliance. ECI's engineers will assess your engine, site and emissions regulatory compliance.
Applications
Every Sector, every diesel engine type.
ECI's MIRA-CUBE™ solutions can be deployed across a wide range of industries and engine applications from pre-engineered MIRA-CUBE™ packages for diesel engine applications.
Power Generation
Standby Power
- Data centres & hyperscale facilities
- Hospitals & healthcare
- Commercial & government buildings
- Grid & water utilities
- Environmentally sensitive areas
Industrial
Industrial & Remote
- Remote & regional sites
- Mining operations
- Chemical processing
- Port facilities
- Food & beverage production
Everything in one integrated system
System Components
A typical ECI SCR NOx Abatement system includes all of the following, custom-configured and pre-wired. The MIRA-CUBE™ consolidates these into a single compact housing.
Get Started
Talk to Australia's leading emission solution experts
Our applications engineers will assess your site, diesel engine specifications and emission regulation conditions then design an solution that meets Tier 4 regulations today and protects you for future requirements.
